Natural Ruby Inclusions

Explore ruby inclusions in Hyperion, the Lotus Gemology inclusion database. Hyperion contains photomicrographs of inclusions and internal features in natural ruby, documented with information on geographic origin, treatment, lighting conditions, field of view, photographer and published references.

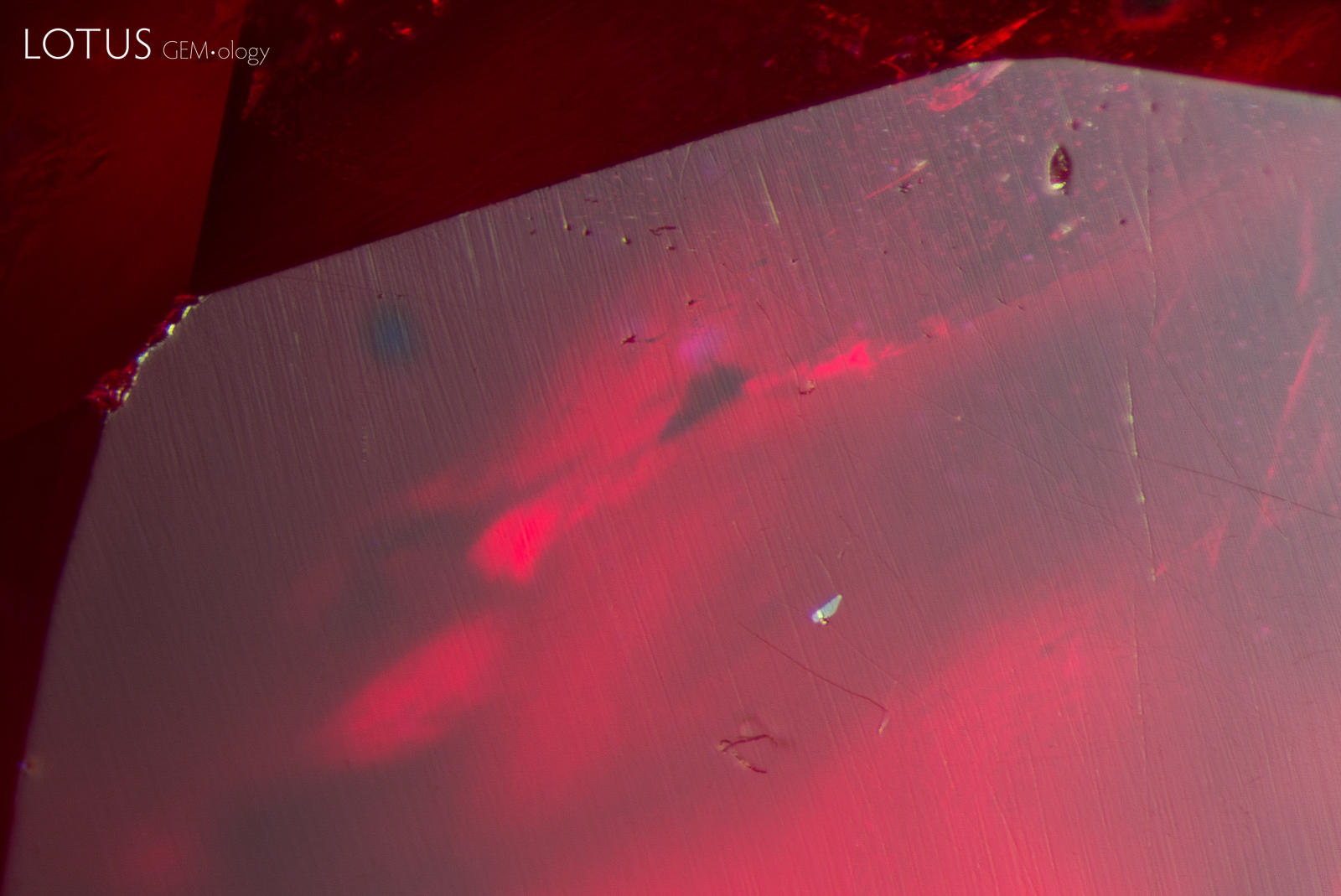

With careful observation we can see an irregular area on the surface of this ruby with a slightly lower luster than the surrounding corundum. Micro raman analysis identified this material as diaspore.

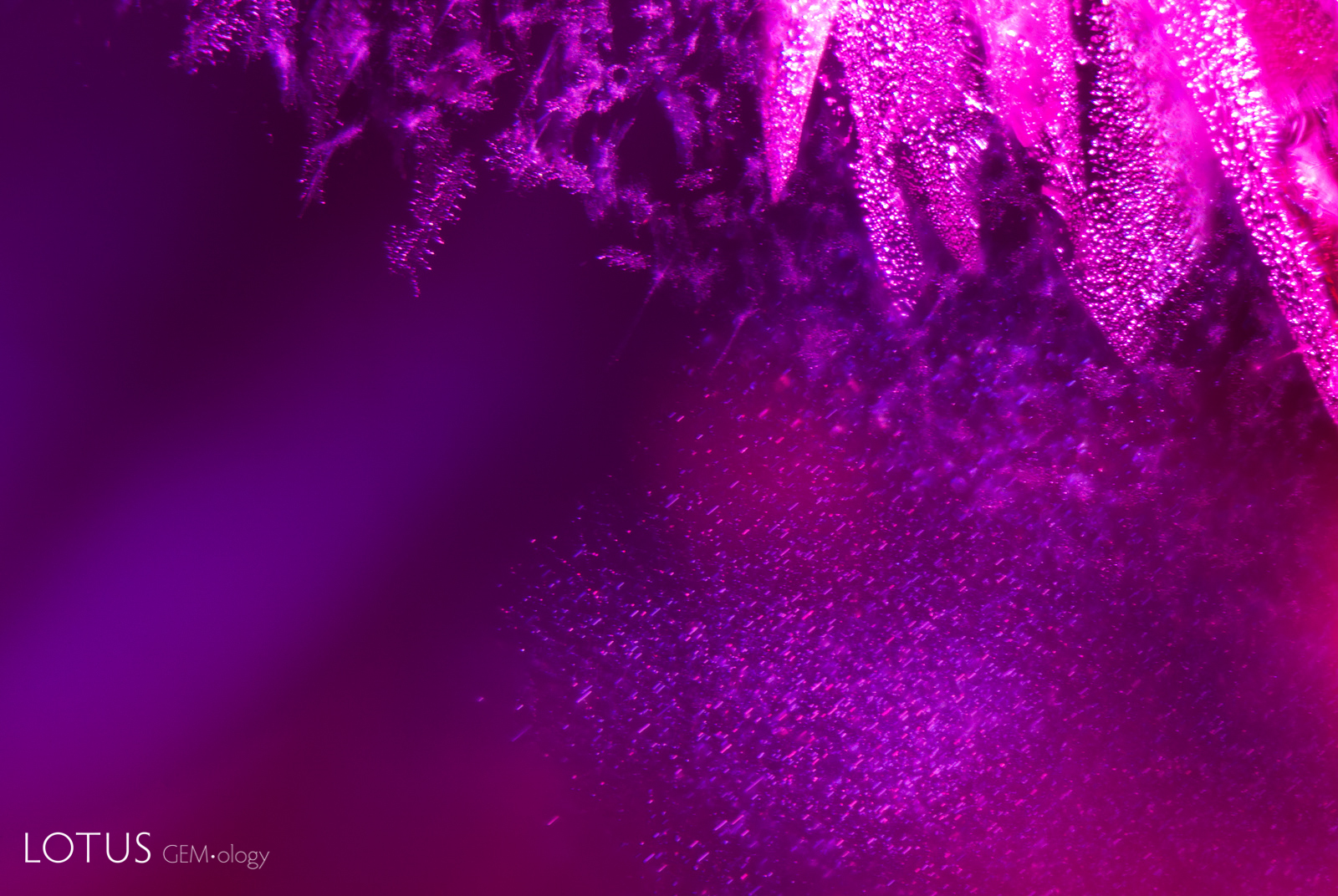

Cottony heated diaspore silk in a ruby from Jegdalek, Afghanistan.
In this ruby from Mong Hsu, Myanmar, we can see both short rutile needles and more irregular wispy diaspore type silk.
A variety of crystals were present in this Madagascar ruby, which we tested with micro Raman. Analysis revealed that the rounded crystal on the left is apatite, the large block crystal in the center is amphibole, and the small rounded crystals are zircon.
When we spotted criss-crossing twin planes in this solid inclusion in a ruby from Mong Hsu, Myanmar, we thought it might be calcite. This was confirmed with Raman spectroscopy.

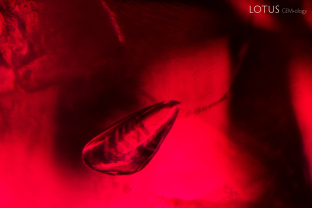

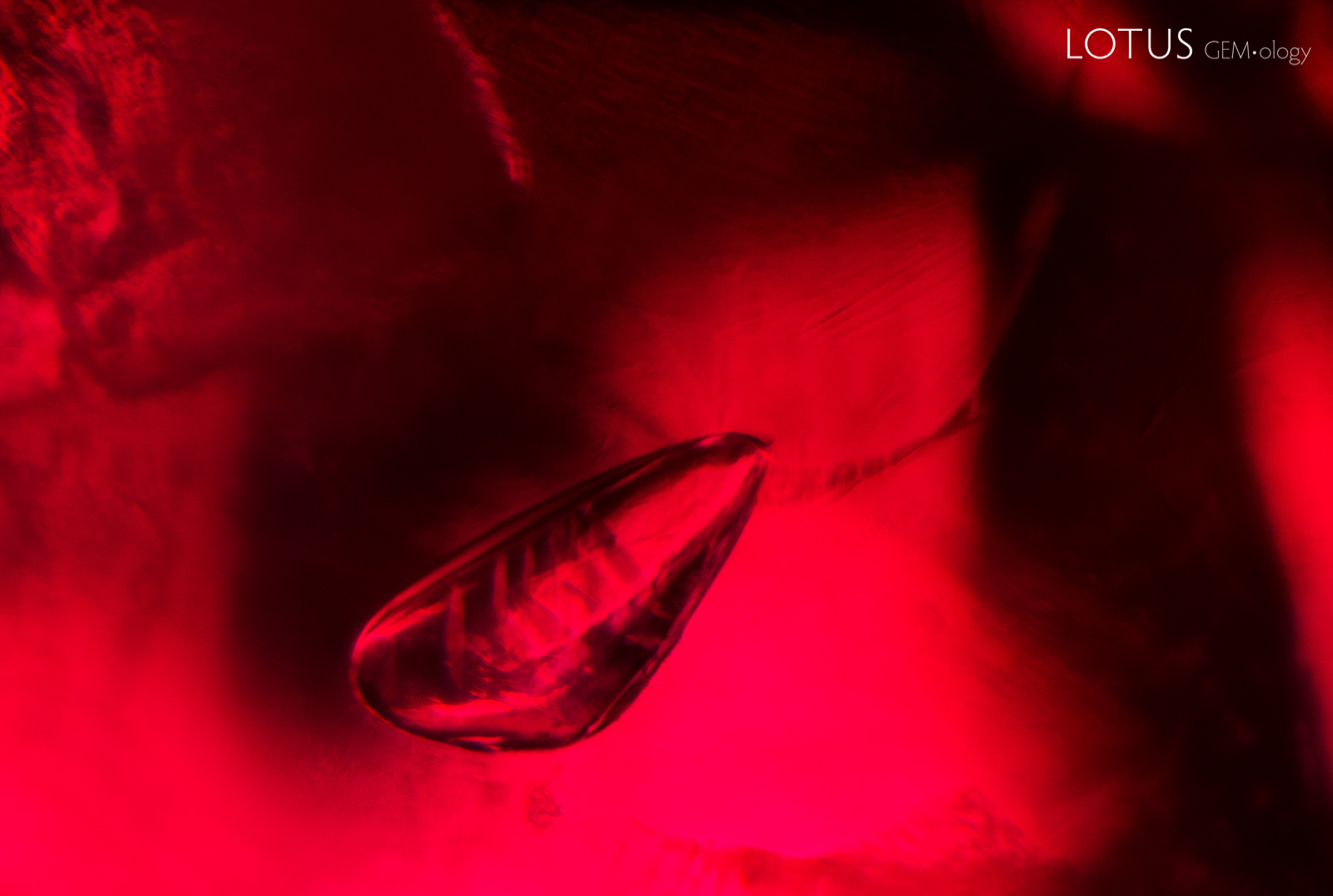

Twin planes are visible in this crystal that is suspended inside of a Mong Hsu ruby.

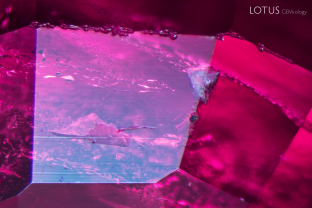

This Mong Hsu ruby contained a couple mineral inclusions, which were identified with micro Raman. The triangular whitish one is mica, and the lower luster material cut through is diaspore.
The natural on the pavilion of this ruby displayed a terraced appearance, reminiscent of a landscape.

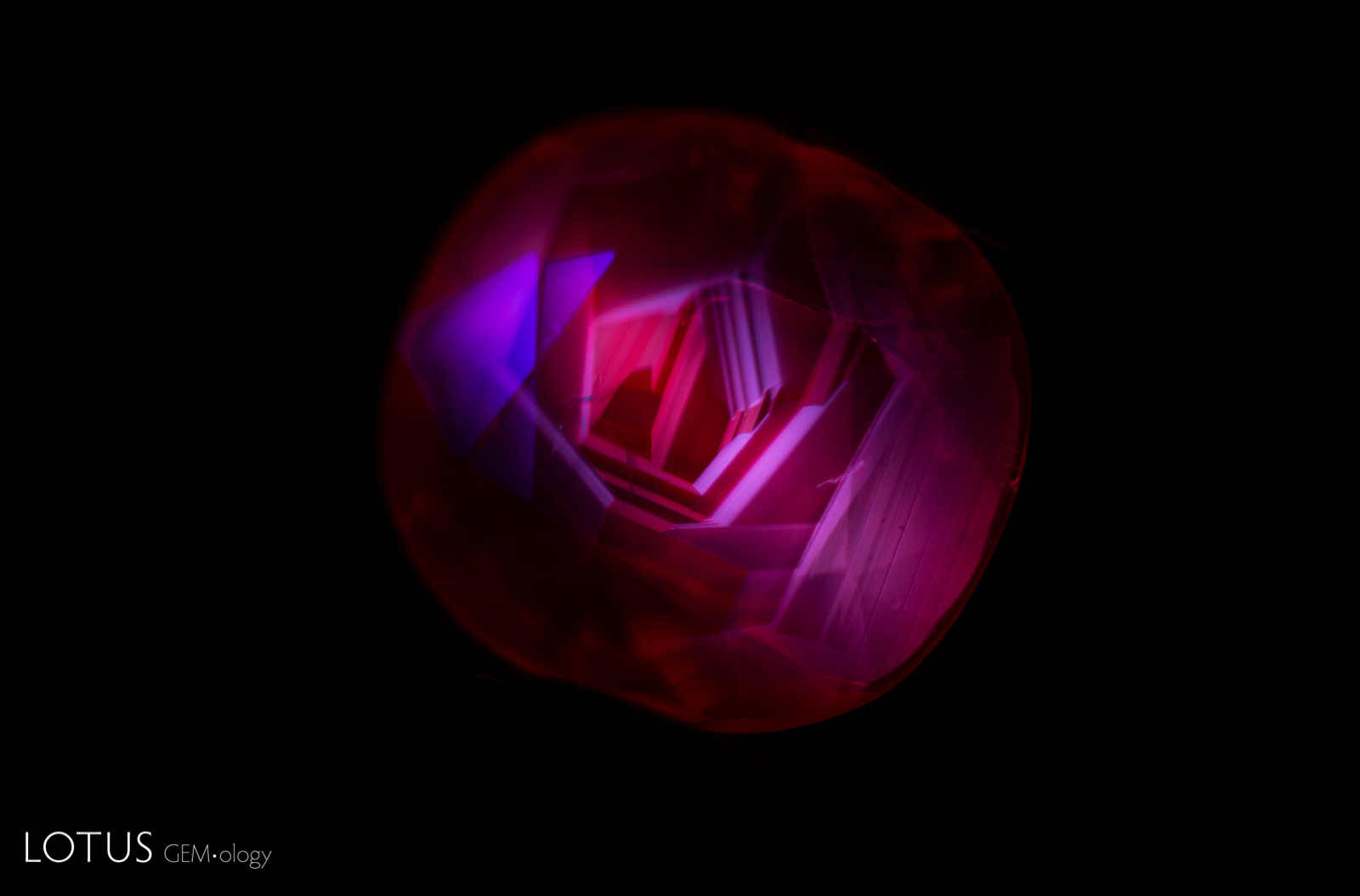

A chalky angular pattern, viewed here in shortwave UV illumination, is a strong sign of heat treatment. Many rubies from Mong Hsu, Myanmar, are heated to remove the blue zones that are often present in the natural material.

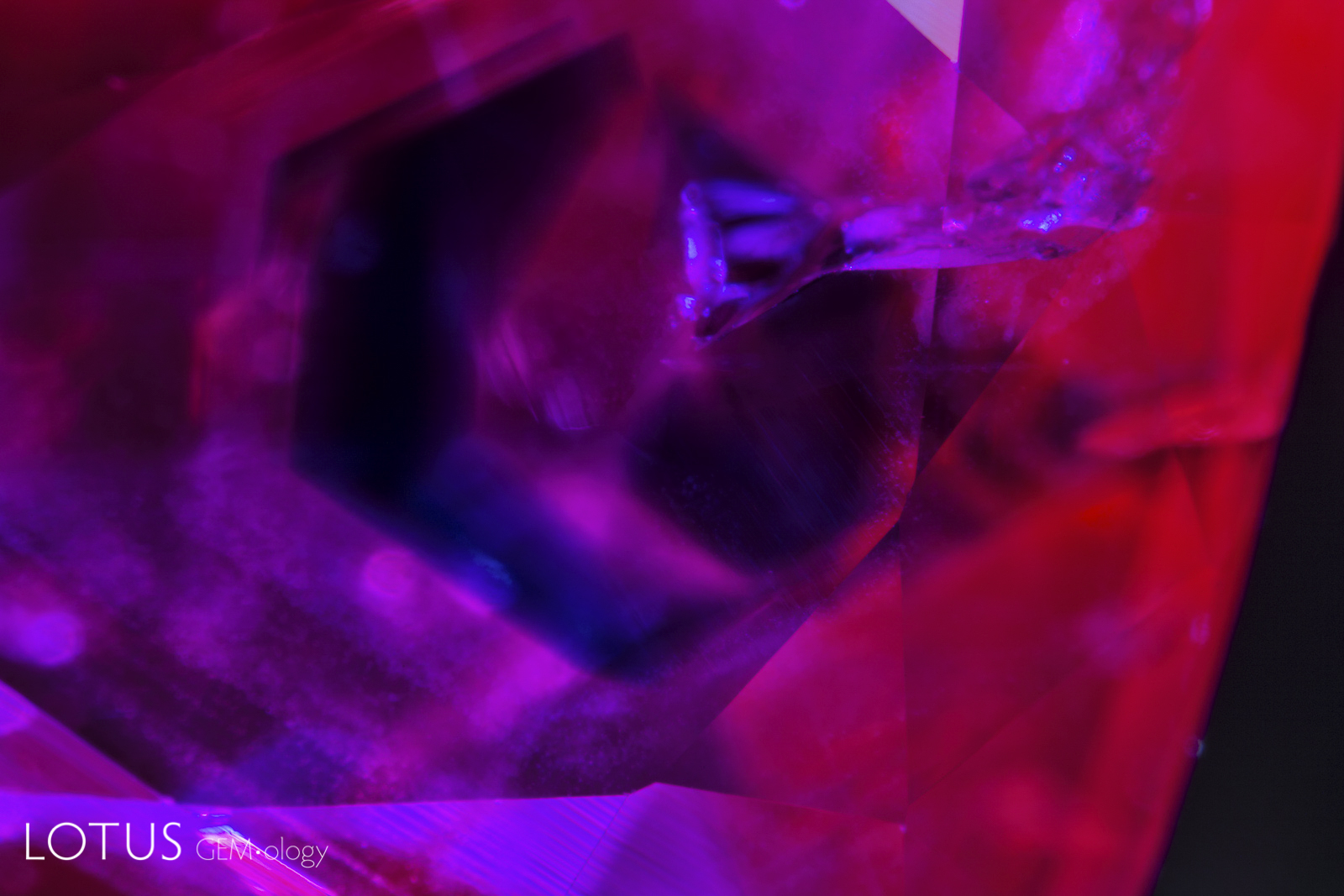

Virtually all Burmese rubies from Mong Hsu feature deep blue cores surrounded by cottony diaspore silk, as shown here. In previous times, most of this material was heated with flux to remove the blue areas and heal the fissures. However with the high price difference between natural and heated rubies, we now see many Mong Hsu rubies that have not been treated.

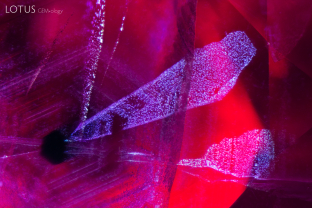

Phantom clouds, made up of small particles arranged in angular zones, create a striking appearance in this Mong Hsu ruby.
A tiny rutile crystal (identified with micro Raman) was cut through on the surface of this ruby. It is notable for its high luster which appears almost metallic in comparison with the surrounding corundum.

Search the Complete Hyperion Database

Natural ruby inclusions may include mineral crystals, rutile silk, healed fissures, fluid inclusions, negative crystals, color zoning and other features formed during or after crystal growth. Such features are important to gemologists because they can provide evidence useful in identifying ruby, understanding its geological history, recognizing treatment and, in some cases, determining geographic origin.

Natural Ruby Inclusion Photomicrographs

The Hyperion natural ruby gallery includes microscopic features found in rubies from major deposits around the world. Each entry is accompanied by descriptive information and, where available, references to the gemological literature.

What Inclusions Can Reveal About Natural Ruby

Inclusions are an important part of ruby identification. Their form, composition, orientation and alteration can help gemologists distinguish natural ruby from synthetic material, recognize evidence of heat treatment, and study the geological environment in which the ruby formed.

Hyperion combines inclusion photomicrography with supporting gemological information so that individual features can be compared with documented examples from known ruby deposits.

About Hyperion

Hyperion is the Lotus Gemology searchable inclusion database. It allows users to browse gemstone inclusions by gem type, geographic origin, treatment and keyword.
